What are the common types of injection mold tooling?

Injection mold tooling is a crucial component in the plastic manufacturing industry, enabling the mass production of various plastic parts and products. Understanding the different types of injection mold tooling is essential for manufacturers, product designers, and engineers to choose the most suitable option for their specific requirements. This blog post will explore the common types of injection mold tooling, their characteristics, and applications. We'll delve into the intricacies of single-cavity molds, multi-cavity molds, family molds, and other specialized tooling options. By examining these various types, we'll gain insights into how they contribute to the efficiency, cost-effectiveness, and quality of plastic injection molding processes. Whether you're a seasoned professional or new to the field, this comprehensive guide will provide valuable information to help you make informed decisions about injection mold tooling.

​​​​​​​

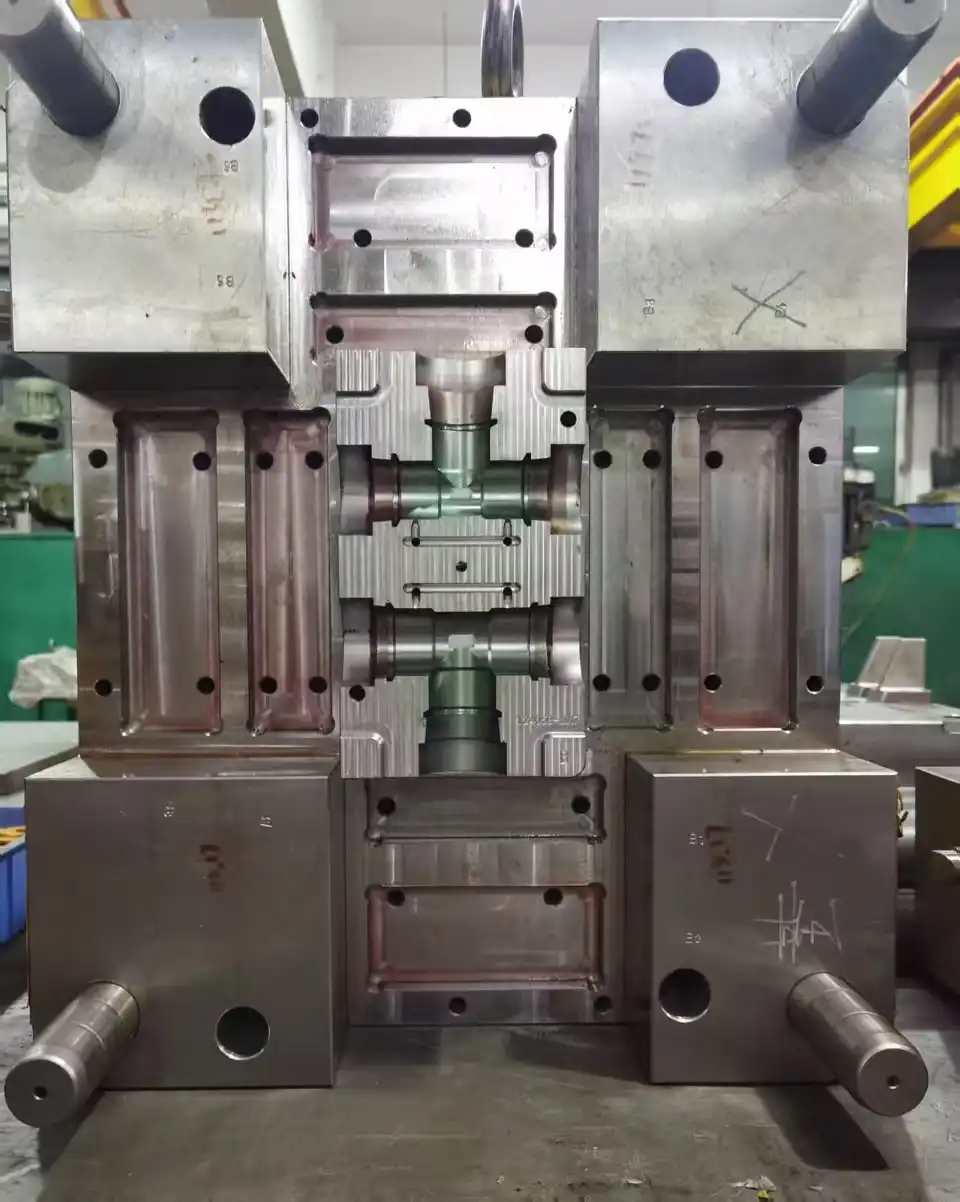

Single-Cavity vs. Multi-Cavity Molds

Single-Cavity Molds: Simplicity and Precision

Single-cavity molds are the most basic type of injection mold tooling, designed to produce one part per injection cycle. These molds are ideal for low-volume production runs, prototyping, or manufacturing large, complex parts. Single-cavity molds offer several advantages, including lower initial tooling costs, easier maintenance, and simpler troubleshooting. They are particularly useful when producing high-precision parts or when working with expensive materials, as they minimize material waste. Custom plastic injection mold manufacturers often recommend single-cavity molds for products that require extensive testing or frequent design changes. While they may have a slower production rate compared to multi-cavity molds, single-cavity molds provide excellent control over part quality and are suitable for a wide range of applications in industries such as automotive, medical, and consumer goods.

Multi-Cavity Molds: Boosting Production Efficiency

Multi-cavity plastic molds are designed to produce multiple identical parts in a single injection cycle, significantly increasing production efficiency and reducing costs for high-volume manufacturing. These molds can range from two cavities to dozens or even hundreds, depending on the size and complexity of the parts being produced. Multi-cavity molds offer several benefits, including lower per-part costs, faster production rates, and more consistent part quality across large production runs. Custom plastic injection mold manufacturers often utilize multi-cavity molds for mass-produced items such as bottle caps, small electronic components, or disposable medical devices. While the initial tooling costs for multi-cavity molds are higher than single-cavity molds, they can provide substantial long-term savings for high-volume production. However, it's important to consider factors such as part size, complexity, and material requirements when determining the optimal number of cavities for a specific project.

Family Molds: Versatility in Production

Family molds are a specialized type of multi-cavity mold that allows for the production of different but related parts in a single injection cycle. This type of injection mold tooling is particularly useful for manufacturing sets of components that are used together, such as different-sized gears or interlocking plastic parts. Family molds offer the advantage of producing multiple components simultaneously, reducing production time and costs. Custom plastic injection mold manufacturers often employ family molds for products that require assembly, like toy sets or modular storage systems. While family molds can be more complex to design and manufacture than standard multi-cavity molds, they provide excellent versatility and efficiency for producing related parts. However, careful consideration must be given to balancing the flow of material to each cavity and ensuring consistent quality across all parts produced in the family mold.

Hot Runner vs. Cold Runner Systems

Hot Runner Systems: Enhanced Efficiency and Quality

Hot runner systems are an advanced type of injection mold tooling that maintains the plastic material in a molten state throughout the injection process. This system eliminates the need for a cold runner, which typically solidifies and is discarded after each cycle. Hot runner molds offer several advantages, including reduced material waste, faster cycle times, and improved part quality. Custom plastic injection mold manufacturers often recommend hot runner systems for high-volume production or when working with expensive materials. These systems are particularly beneficial for multi-cavity plastic molds, as they ensure consistent material flow and temperature across all cavities. Hot runner molds also allow for better control over gate location and size, resulting in improved part aesthetics and reduced post-molding finishing requirements. While hot runner systems have higher initial costs and require more maintenance than cold runner systems, they can provide significant long-term benefits in terms of efficiency and part quality.

Cold Runner Systems: Simplicity and Cost-Effectiveness

Cold runner systems are a more traditional type of injection mold tooling that allows the plastic material to solidify in the runner system after each injection cycle. The solidified runner is then ejected along with the molded part and typically recycled or discarded. Cold runner molds are simpler in design and less expensive to manufacture than hot runner systems, making them an attractive option for low to medium volume production runs. Custom plastic injection mold manufacturers often use cold runner systems for larger parts or when working with materials that are sensitive to prolonged heat exposure. While cold runner molds may have longer cycle times and generate more material waste compared to hot runner systems, they offer advantages such as easier maintenance, simpler mold design, and lower initial tooling costs. Cold runner systems are particularly suitable for multi-cavity plastic molds producing small to medium-sized parts, as well as for applications where material regrind can be easily incorporated back into the production process.

Hybrid Runner Systems: Combining the Best of Both Worlds

Hybrid runner systems combine elements of both hot and cold runner technologies to offer a balanced solution for certain injection molding applications. These systems typically feature a heated main runner with cold sub-runners or drops leading to the mold cavities. Hybrid runner molds provide a compromise between the efficiency of hot runner systems and the simplicity of cold runner systems. Custom plastic injection mold manufacturers may recommend hybrid systems for complex parts or when working with materials that have specific processing requirements. This type of injection mold tooling can be particularly beneficial for multi-cavity plastic molds where consistent material flow and temperature control are crucial, but the full complexity of a hot runner system is not necessary. Hybrid runner systems offer advantages such as reduced material waste compared to cold runner systems, lower initial costs than full hot runner systems, and improved flexibility in mold design. However, they may require more careful balancing and maintenance than simpler cold runner molds.

Specialized Injection Mold Tooling

Stack Molds: Maximizing Production Capacity

Stack molds are a specialized type of injection mold tooling designed to increase production capacity without requiring a larger injection molding machine. These molds feature multiple parting lines and can produce twice or even three times the number of parts per cycle compared to a standard mold. Stack molds are particularly useful for high-volume production of smaller parts, such as bottle caps or thin-walled containers. Custom plastic injection mold manufacturers often recommend stack molds for projects that require significant output but are limited by machine size or available floor space. While stack molds are more complex and expensive to design and manufacture than standard molds, they offer substantial benefits in terms of production efficiency and cost-effectiveness for suitable applications. Stack molds can be combined with multi-cavity plastic molds to further increase production capacity, making them an excellent choice for manufacturers looking to maximize their output without investing in additional machinery.

Unscrewing Molds: Tackling Threaded Parts

Unscrewing molds are specialized injection mold tooling designed to produce parts with internal or external threads, such as bottle caps, jar lids, or threaded fittings. These molds incorporate a rotating mechanism that unscrews the molded part from the core as the mold opens, allowing for the production of complex threaded features without the need for secondary machining operations. Custom plastic injection mold manufacturers often utilize unscrewing molds for products that require precise, high-quality threads or for high-volume production of threaded parts. While unscrewing molds are more complex and expensive to manufacture than standard molds, they offer significant advantages in terms of part quality, consistency, and production efficiency. Unscrewing molds can be designed as single-cavity or multi-cavity plastic molds, depending on the production requirements and part size. This type of injection mold tooling is particularly valuable in industries such as packaging, plumbing, and automotive, where threaded plastic components are widely used.

Gas-Assisted Injection Molds: Enhancing Part Design and Quality

Gas-assisted injection molds are a specialized type of injection mold tooling that incorporates the use of pressurized gas during the molding process. This technique involves injecting gas (typically nitrogen) into the mold cavity along with the molten plastic, creating hollow sections within the part. Gas-assisted molding offers several advantages, including reduced part weight, improved dimensional stability, and the ability to produce complex geometries with thick and thin sections. Custom plastic injection mold manufacturers often recommend gas-assisted molds for large parts with varying wall thicknesses or for components that require high structural integrity with minimal material usage. This technology is particularly useful in industries such as automotive, furniture, and large appliances, where weight reduction and material savings are crucial. Gas-assisted injection molds can be designed as single-cavity or multi-cavity plastic molds, depending on the specific requirements of the project. While gas-assisted molds require more specialized equipment and expertise than standard injection molds, they offer unique capabilities for producing innovative and cost-effective plastic parts.

Conclusion

In conclusion, the world of injection mold tooling offers a diverse range of options to suit various manufacturing needs. From single-cavity and multi-cavity molds to specialized designs like stack molds and unscrewing molds, each type of tooling has its unique advantages and applications. The choice between hot runner, cold runner, or hybrid systems further expands the possibilities for optimizing production efficiency and part quality. As technology continues to advance, custom plastic injection mold manufacturers will undoubtedly develop even more innovative tooling solutions to meet the evolving demands of the industry. By understanding the characteristics and benefits of different injection mold tooling types, manufacturers can make informed decisions to enhance their production processes and maintain a competitive edge in the market.

For expert guidance on selecting the right injection mold tooling for your project, consider reaching out to Alwin Asia Limited. With over 20 years of experience in the industry, our team at Dongguan Yongsheng Hardware Plastic Product Co., Ltd. specializes in plastic molds, die casting molds, and plastic products. We offer comprehensive services, including design and development, mold fabrication, production, and secondary processing. Our commitment to quality, cost-effectiveness, and on-time delivery makes us an ideal partner for your injection molding needs. Located in Chang'an Town, Dongguan City, Guangdong Province, we are conveniently situated near Shenzhen Airport. To learn more about our services or to discuss your project, please contact us at sales-c@alwinasia.com.

FAQ

Q: What is the main difference between single-cavity and multi-cavity molds?

A: Single-cavity molds produce one part per injection cycle, while multi-cavity molds produce multiple identical parts in a single cycle.

Q: When should I choose a hot runner system over a cold runner system?

A: Hot runner systems are better for high-volume production, expensive materials, and when consistent part quality is crucial.

Q: What are the advantages of using a family mold?

A: Family molds allow for the production of different but related parts in a single injection cycle, reducing production time and costs.

Q: How do stack molds increase production capacity?

A: Stack molds feature multiple parting lines, allowing them to produce twice or three times the number of parts per cycle compared to standard molds.

Q: What types of products are best suited for unscrewing molds?

A: Unscrewing molds are ideal for producing parts with internal or external threads, such as bottle caps, jar lids, and threaded fittings.
