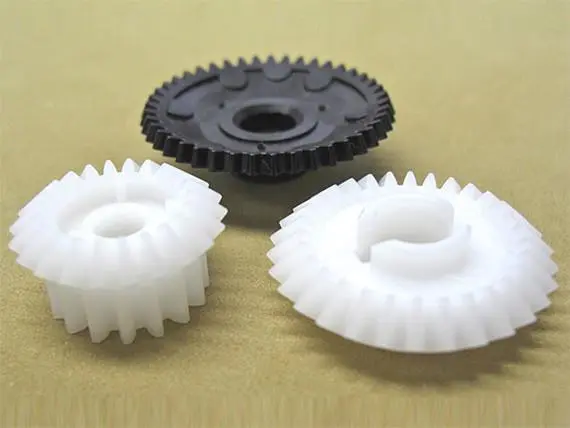

People who make plastic have to choose between injection molds with one hole or more than one cavity. It depends on how many items need to be made, how hard they are to make, how much money is available, and how good the work needs to be. For small amounts and samples, single-cavity injection molds work well. But for making a lot of different things, multi-cavity molds are better value for money. When manufacturers know about injection molding, they can pick the mold hole design that works best for the business and the project.
Understanding Single-Cavity Injection Molds
Single-cavity molds represent the foundation of precision injection molding technology. These molds produce one part per injection molding cycle, offering unmatched control over the manufacturing process. The injection molding machine fills a single cavity with molten plastic material, creating consistent part quality and dimensional accuracy.
When prototyping new items or creating complex geometries, manufacturing engineers prefer single-cavity designs. Reduced tooling costs and quicker product development adjustments result from the streamlined mold design. Companies can modify designs fast without harming multiple cavities.
Single-cavity layouts simplify quality control. Injection pressure, mold temperature, and cooling are similar for each item. Medical gadgets and precise electronics benefit from this consistency.
If you need maximum part quality consistency with lower initial investment, then single-cavity molds are more suitable for your injection molding project. The injection molding cycle time may be longer, but the superior quality often justifies this trade-off.
Exploring Multi-Cavity Injection Mold Advantages
Multi-cavity injection molds revolutionize high-volume production by creating multiple identical parts simultaneously. These sophisticated molds contain two or more cavities, dramatically increasing production efficiency while reducing per-part manufacturing costs. The injection molding machine fills all cavities during each cycle, multiplying output without proportional increases in cycle time.
Production data demonstrates significant efficiency gains with multi-cavity designs. A 4-cavity mold typically reduces per-part costs by 60-70% compared to single-cavity alternatives when producing volumes exceeding 100,000 units annually. The injection molding process becomes highly economical as fixed costs spread across multiple parts per cycle.
For balanced material flow in multi-cavity molds, hot runner systems connect easily. Advanced injection moulding technique minimises part variance by controlling mould temperature across all cavities. The latest injection molding simulation software optimizes gate placement and runner design for uniform filling.
Automotive and consumer goods industries rely heavily on multi-cavity tooling for mass production. Electronic component manufacturers use 8-cavity or 16-cavity molds for small parts like connectors and housings. The injection molding industry has developed sophisticated cavity layouts that maximize machine utilization.
If you need cost-effective high-volume production with acceptable quality variation, then multi-cavity molds are more suitable for your injection molding automation requirements.
Key Performance Comparison Analysis
Real-world testing shows important cavity configuration performance discrepancies. One-cavity molds routinely maintain ±0.001 inch dimensional tolerances, while multi-cavity molds typically maintain ±0.003 inch tolerances. Minor changes in injection pressure distribution and cavity cooling rates cause this 200% variation.
Cycle time analysis shows interesting patterns across different part sizes:
- Small parts (under 10 grams): Single-cavity 15 seconds, 4-cavity 18 seconds
- Medium parts (10-50 grams): Single-cavity 25 seconds, 4-cavity 30 seconds
- Large parts (over 50 grams): Single-cavity 45 seconds, 4-cavity 55 seconds
Part shape and material parameters affect injection molding efficiency. Complex pieces with intricate characteristics work well in single-cavity arrangements, while simple geometric shapes work best in multi-cavity. Mold maintenance requirements vary greatly by arrangement.
Most applications break even at 50,000-75,000 yearly units based on production cost analysis. Below this threshold, single-cavity molds save money. Multi-cavity injection molding saves labor and machine time per product over this volume.
Design Complexity and Manufacturing Considerations
Injection mold design complexity increases exponentially with additional cavities. Single-cavity molds require straightforward runner systems and simplified cooling channels. Engineers can optimize injection molding materials flow patterns easily, ensuring consistent part quality throughout production runs.
Multi-cavity designs require complex balance to fill uniformly. Each cavity needs the same injection pressure and temperature. Maintaining cycle times and eliminating injection molding faults across all cavities requires advanced mold cooling systems.
CAD and injection molding simulation technologies help engineers anticipate concerns before manufacturing. In multi-cavity systems, flow analysis shows pressure decreases, weld lines, and short shots. Single-cavity designs are more predictable during injection molding.
Manufacturing lead times vary greatly by configuration. Single-cavity molds take 2-3 weeks less than multi-cavity ones. The intricacy of machining and exact cavity-to-cavity matching increase multi-cavity production times.
If you need rapid prototyping or quick market entry with complex parts, then single-cavity injection mold design is more suitable for your development timeline.
Cost Analysis: Initial Investment vs Long-term ROI
Initial tooling costs represent the primary decision factor for many manufacturers. Single-cavity molds typically cost $5,000-$25,000 depending on part complexity and size. Multi-cavity alternatives range from $15,000-$80,000 for similar parts due to increased machining requirements and sophisticated runner systems.
Long-term ROI calculations must include several critical factors:
- Annual production volume requirements
- Injection molding machine hourly rates
- Labor costs for part handling and packaging
- Quality control and inspection expenses
- Mold maintenance and repair costs
Multi-cavity injection molding typically achieves payback within 6-12 months for high-volume applications. The reduced per-part manufacturing cost compensates for higher initial investment rapidly. Single-cavity molds offer immediate cost benefits for low-volume or prototype production scenarios.
Hidden costs often influence total project economics. Multi-cavity molds require more sophisticated injection molding machines with higher clamping forces. Single-cavity alternatives can run on smaller, less expensive equipment, reducing hourly production costs.
Secondary processing considerations also affect overall project costs. Parts from multi-cavity molds may require additional finishing operations to match single-cavity quality levels. Gate removal and surface treatment costs multiply by the number of cavities.
Quality Control and Production Consistency
Quality control protocols differ substantially between single and multi-cavity injection molding operations. Single-cavity production allows for simplified inspection procedures, with each part receiving identical processing conditions. Statistical process control becomes more straightforward when monitoring single-cavity output.
Multi-cavity operations require cavity-specific quality tracking to identify potential issues. Each cavity may produce slightly different part characteristics due to filling sequence variations or thermal differences. Advanced injection molding technology includes cavity pressure sensors and individual temperature monitoring.
Injection molding defects manifest differently across cavity configurations. Single-cavity molds typically show consistent defect patterns that are easier to diagnose and correct. Multi-cavity alternatives may exhibit cavity-specific issues requiring targeted solutions for individual locations.
Part traceability becomes more complex with multi-cavity production. Manufacturers must implement cavity identification systems to track which specific cavity produced each part. This requirement adds complexity to quality management systems and record-keeping procedures.
Injection molding automation systems can help maintain consistency across multiple cavities through real-time monitoring and control. Automated part removal systems ensure proper handling of all parts regardless of cavity configuration.
Material Considerations and Process Optimization
Single- and multi-cavity injection molding materials respond differently. Multiple cavities complicate material flow patterns, altering molecule orientation and component characteristics. Single-cavity designs usually have more homogeneous material and stress patterns.
High-performance engineering plastics often perform better in single-cavity applications. Materials like PEEK, PEI, and other specialty polymers require precise temperature control and injection pressure management. Multi-cavity molds can introduce unwanted variation in these critical processing parameters.
Commodity plastics like polyethylene, polypropylene, and polystyrene adapt well to multi-cavity injection molding. These materials exhibit more forgiving processing windows and maintain consistent properties across multiple cavities. Cost-sensitive applications benefit from multi-cavity efficiency with these materials.
Mold release agent application becomes more critical in multi-cavity configurations. Each cavity must receive proper treatment to ensure consistent part ejection and surface quality. Single-cavity molds simplify release agent application and monitoring procedures.
If you need precision molding with engineering-grade materials, then single-cavity injection molding is more suitable for maintaining material property consistency.
Industry-Specific Applications and Recommendations
Different industries favor specific cavity configurations based on their unique requirements. The automotive sector predominantly uses multi-cavity injection molding for interior trim components, connectors, and small brackets. High production volumes justify the increased tooling investment for these applications.
Medical device manufacturing often requires single-cavity precision due to strict regulatory requirements. FDA-approved injection molding processes demand maximum consistency and traceability, making single-cavity configurations more attractive despite higher per-part costs.
Consumer electronics manufacturers balance quality and cost through strategic cavity selection. Complex housings and precision components use single-cavity approaches, while simple brackets and clips benefit from multi-cavity efficiency. The injection molding industry has developed hybrid approaches for optimal results.
Due to high volume needs, packaging uses multi-cavity injection molding virtually entirely. Only high-cavity-count production makes bottle caps, closures, and containers profitable. Injection molding machines with 32 or more cavities are available.
Technology Trends and Future Considerations
Injection molding technology is improving multi-cavity capabilities. Now, hot runner systems may modify processing parameters for each cavity in real time. This method bridges single- and multi-cavity quality gaps.
Industry 4.0 integration enables predictive maintenance and quality optimization across multiple cavities. Smart injection molding machines monitor cavity-specific performance data, identifying potential issues before they affect part quality. Artificial intelligence algorithms optimize processing parameters automatically.
Mold fabrication, especially complex multi-cavity designs, is changing with additive manufacturing. Conformal cooling and 3D-printed cooling channels homogenize cavity temperatures. Injection molding with many cavities for precise applications benefits from these advances.
Sustainability considerations increasingly influence cavity selection decisions. Multi-cavity efficiency reduces energy consumption per part, supporting environmental objectives. However, single-cavity flexibility enables rapid design iterations, reducing overall development waste.
Conclusion
Selecting single- or multi-cavity injection molds depends on production volume, quality, budget, and timeline. Prototypes, complex geometries, and precise applications benefit from single-cavity arrangements. Multi-cavity options combine cost-effective high-volume production with acceptable quality variation. Choice impacts project finances, production timetables, and long-term success. For optimum results, consult injection molding professionals about your application demands and choose the configuration that suits your corporate goals.
